Take… Your Perfect Bike

ADD… CYTRONEX C1
ELECTRIC BICYCLE POWER
(3.6KG)

Cannondale Quick Carbon 2 with Cytronex C1 electric bike conversion kit fitted

ENJOY… FAST, FUN
DOOR-TO-DOOR TRANSPORT

Cannondale Quick Carbon 2 with Cytronex C1 electric bike conversion kit fitted

Cytronex C1 electric bike conversion kit adds just 3.6kg to a bicycle for the
power of a pro. Get door-to-door faster and arrive sweat-free.

ENJOY… KEEPING UP
WITH FRIENDS OR FAMILY

Cannondale Quick Carbon 2 with Cytronex C1 electric bike conversion kit fitted

Choose who to ride with – set an exact power level to match any rider.
C1 electric bike conversion kit will convert drop & flat bar bikes.

ENJOY… LEAVING THE
CAR AT HOME

Cannondale Quick Carbon 2 with Cytronex C1 electric bike conversion kit fitted

Whether it’s an evening out or shopping – a Cytronex electric bicycle
gives you all the fun of cycling without the tough bits.

ENJOY… THE BEST WAY
TO SEE COUNTRYSIDE

Cannondale Quick Carbon 2 with Cytronex C1 electric bike conversion kit fitted

There’s nothing quite like the feeling of cycling mountain roads and
paths on a Cytronex assisted electric bicycle. Go further, together.

ENJOY… ULTRA
LIGHTWEIGHT ASSISTED CYCLING

Cannondale Quick Carbon 2 with Cytronex C1 electric bike conversion kit fitted

The C1 bottle removes in seconds leaving just 2.1kg of extra weight to
lift onto your car or motorhome. There is no lighter electric bicycle.

ENJOY… GETTING FITTER

Cannondale Quick Carbon 2 with Cytronex C1 electric bike conversion kit fitted

With assistance off, your bike rides just as it did before the C1 electric kit
was fitted, so you can use less assistance as you get fitter.

INTRODUCING…

…the revolutionary new ultra-light electric bike conversion kit – Cytronex C1

Electrify your Bike

  • OVERVIEW
  • FIT & COMPATIBILITY

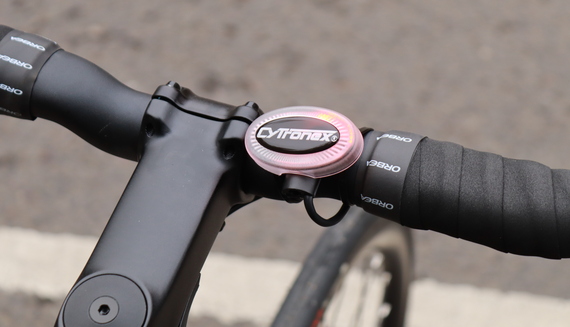

01 BOOST BUTTON

Fitting the Cytronex C1 conversion kit to a bicycle does not change the way the bike rides when the system is off, so when the terrain is easy, you don’t need assistance. When the going gets tough, just press the Boost Button and smooth, refined and virtually silent assistance powers you up steep hills and through head winds. A Cytronex C1 assisted bike rides like no other electric bicycle.

Boost Button turns on and off with a single press. If you press and hold for one second the button will change colour and provide a different power level. You can set the power for each colour in the C1 App. Whatever power level you choose – your Cytronex ebike will add that precise power level to your cycling effort. Press and hold the Boost Button for two seconds and you can turn on the optional high power LED bicycle lights.

02C1 App

Customise your ride.

The Cytronex bottle connects to your PC via USB whilst in the Charge Shoe so you can use the C1 App. This allows you to set exact power levels and the brightness of LEDs – day or night. The App includes a diagnostic function – in the event of an issue you can send a log file to Cytronex and you can update your system automatically when new software is available. The advanced all British electronics can maintain a precise power level so you can enjoy riding with family or friends. No other ebike does this.

Press and hold for one second to change colour - set the electric power assistance you want for each colour in the C1 app
  • OVERVIEW
  • FIT & COMPATIBILITY

03 CAGE

Patented quick-connect bottle cage clamps bottle battery and connects all in one action.

The Compact tilt and clamp action allows bottle to fit in small spaces for maximum compatibility – fitting to almost any size of bike. Optional lock prevents removal of bottle from cage, padlock can also be joined to a bicycle cable lock.

The result is neater than even a standard water bottle cage.

04Bottle

Our compact Lithium water bottle battery is small, but packs a big punch.

State of the art British designed and built electronics provide an electric bicycle with ultra-smooth and virtually silent assistance with unrivalled efficiency. All of the key system electronics, from motor control to 6V power for bicycle lights, are miniaturised inside the ultra light and compact water bottle case which also houses the powerful lithium battery.

90 Mins
25 Miles
1.5 Kg
  • OVERVIEW
  • FIT & COMPATIBILITY

05 CYTRONEX SENSOR

One Sensor, Low Maintenance, Easy fitting

Our multi patented Cytronex sensor replaces the 3 sensors required by other ebike kits to comply with regulations and fits quickly and easily without bicycle tools. Cytronex sensor detects the movement of a rear sprocket to monitor pedalling and bicycle speed on most bikes and the ultra fast response means a brake sensor is not required.

Sensor head swings out of the way if knocked during bicycle maintenance and can simply be flipped straight back to the original position.

06MOTOR

Discreet small and lightweight motor packs enough power to easily climb hills
and silently pass even the strongest riders.

Our new hub motor wheel is available in disc or V-brake versions, black or silver to match your rear wheel and a variety of sizes to fit your bike. Selecting European C1 provides 25Kmh maximum speed and the USA version has a maximum speed of 20mph. With Boost off, the motor hub is not engaged and the wheel spins freely without resistance. The motor weighs just 2Kg and the complete C1 conversion kit adds just 3.6Kg,- start with a good bicycle and the result is often 5Kg+ lighter than a purpose built ebike.

  • OVERVIEW
  • FIT & COMPATIBILITY

07 CHARGER

Compact Fast Chargers with Charge Progress Indicator

To charge – turn your bottle upside down and place in the charge shoe. The bottle LED will shine on the Cytronex logo to indicate charge level as charging progresses – if you are in a hurry you can see when you have enough charge for your journey.

Our compact fast chargers and charge indication function are perfect for topping up your battery when you stop for lunch or coffee.

2.5 Hours


Standard Charger

90 Minutes


Optional Fast Charger

Cytronex C1 water bottle battery in charge shoe - logo colour shows charge progress
